2007 Gallery - Team Project 3
For most of the semester, students were put in mixed teams of graduate and undergraduate, photography and engineering. The teams were given access to a range of flow visualization equipment and experiments, and were also encouraged to create their own apparatus. Students worked both as artist plus assistants, and in fully collaborative arrangements.
Group Eta: Daniel Bodenstein, Brock Ewing, Joseph Graham, Michael Long, Christopher O'Loughlin. Objects dropped into water were imaged above and below waterline, synchronized by strobe illumination.
  Click to view larger image. click to view larger image. Click to view larger image. Click to view larger image. click to view larger image.

Joseph Graham, Group Eta

Collage of air entrained behind sinking objects.
More info.
Christopher OLoughlin, Group Eta

Above and below waterline, showing a sinking die.
More info.
Daniel Bodenstein, Group Eta

Above and below waterline, showing a sinking ball.
More info.
Brock Ewing, Group Eta

Instabilities between air and water in the wake of a sinking ball.
More info.
Michael Long, Group Eta

Ball seems motionless at the moment of impact.
More info.

Group Zeta: David Levine and Jake Dembeck worked together, placing bowls of liquid on a loudspeaker cone. Robert Irmiger, J. Chris Miller and Brittany Moore worked independently.
  Click to view larger image. Click to view larger image. click to view larger image.
Click to view larger image. Click to view larger image.

David Levine and Jake Dembeck

Windex excited by a loudspeaker from below.
More info.
Jake Dembeck and David Levine,

Dyed water, excited by a loudspeaker from below.
More info.
J. Chris Miller

Dynamics of the interaction of snow and wind.
Video 1: Snow in Wind
Video 2: Avalanche
Video 3: Wind
More info.
Robert Irmiger

Pouring a cornstarch/water mixture shows non-Newtonian behavior.
More info.
Brittany Moore

Dyed boiled fruit.

Group Beta: Shane Fagan and Megan Firestone were joined by Trisha Harrison, and worked with negatively buoyant water fog created with dry ice, cascading down over axisymmetric vessels. Grant Crowley, Eli Luke and Kaite Mcnally worked independently.
  Click to view larger image. Click to view larger image. Click to view larger image. Click to view larger image. Click to view larger image. Click to view larger image.


Shane Fagan, Group Beta

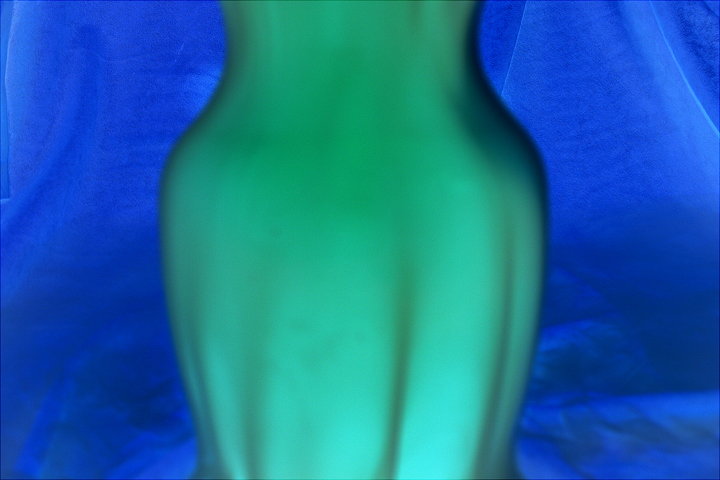

Water fog from dry ice shrouds a container. Color is reversed.
More info.
Megan Firestone, Group Beta

Water fog from dry ice shrouds a container.
Alternate image
More info.
Trisha Harrison, Group Beta

Text.
More info.
Grant Crowley

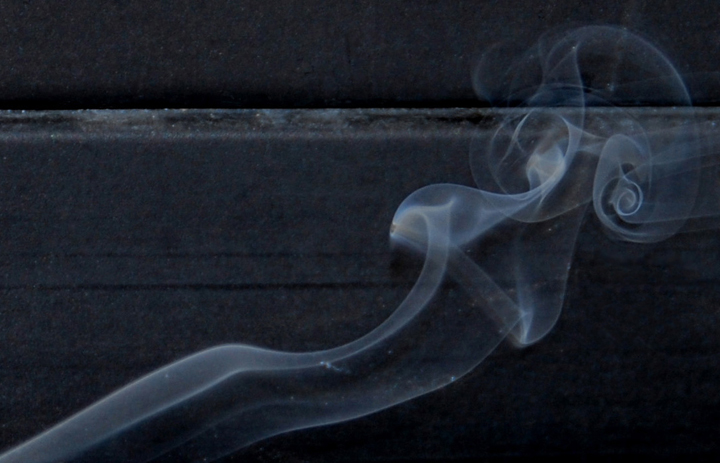

Rising smoke from an ember shows jet instability.
More info.
Kaite Mcnally

Rising smoke curls under a spoon.
More info.
Eli Luke

Dye shows a vortex and oscillating axial flow in a glass. Click here to see video
More info.

Group Gamma: Amanda Barnes, Sean Hulings, Mu Hong Lin and Brian Roche experimented with splashes created by droplet impact. Vanessa Ready worked independently.
  Click to view larger image. Click to view larger image. click to view larger image. Click to view larger image. Click to view larger image.

Sean Hulings, Group Gamma

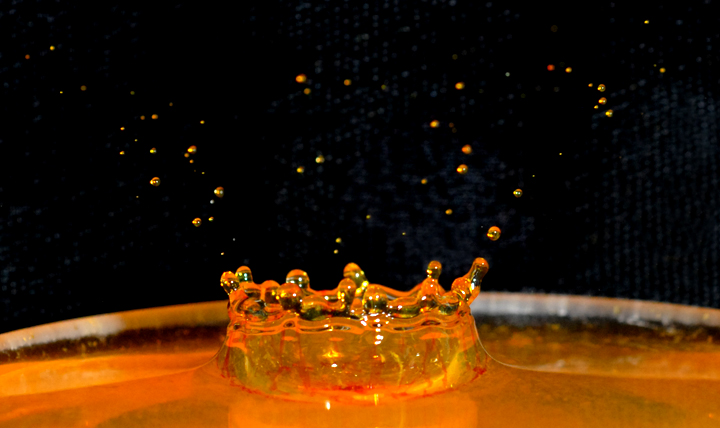

Crown splash from liquid food dye droplet into rubbing alcohol.
More info.
Mu Hong Lin, Group Gamma

Little Red Alien in a Hot Tub Watching Fireworks.
More info.
Brian Roche, Group Gamma

Droplet of food dye into milk creates a Worthington jet.
More info.
Amanda Barnes, Group Gamma

Impact crater from a droplet of blue food dye into milk.
More info.

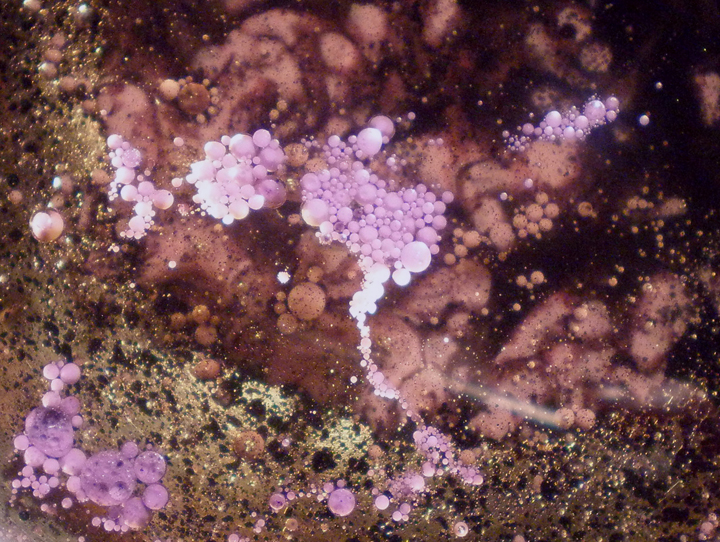

Vanessa Ready



Group Epsilon: Geoff Duckworth, Brian Larsen, Darwin Millard and Christopher Osborn experimented with a rheoscopic fluid from Laminar Sciences. Small oblong reflective/refractive particles in the fluid line up with the shear field. Mark Rizzuto worked independently.
  Click to view larger image. Click to view larger image.

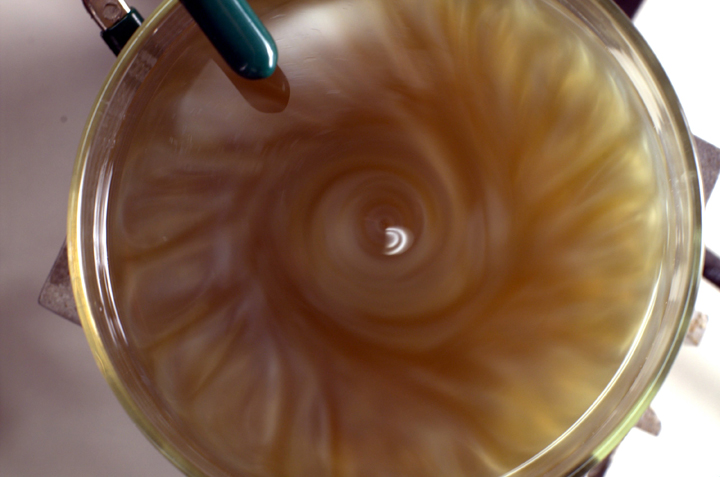

Darwin Millard, Geoff Duckworth, Brian Larsen, Christopher Osborn


Click here to see video
More info from Brian Larsen, Geoff Duckworth, Darwin Millard, and Chris Osborn.
Mark Rizzuto

An Alka Seltzer bubbles up through water and canola oil.
More info.

Group Delta: Phil Bollam, Justin Cohee, Erik Hansen, Barry Whittaker, Ray (Hsin Jui) Wu. Negatively buoyant plumes of water fog from dry ice issue from a tube, undergoing jet instabilities as they fall.
  Click to view larger image. Click to view larger image. Click to view larger image. Click to view larger image. Click to view larger image.

Barry Whittaker, Group Delta


More info.

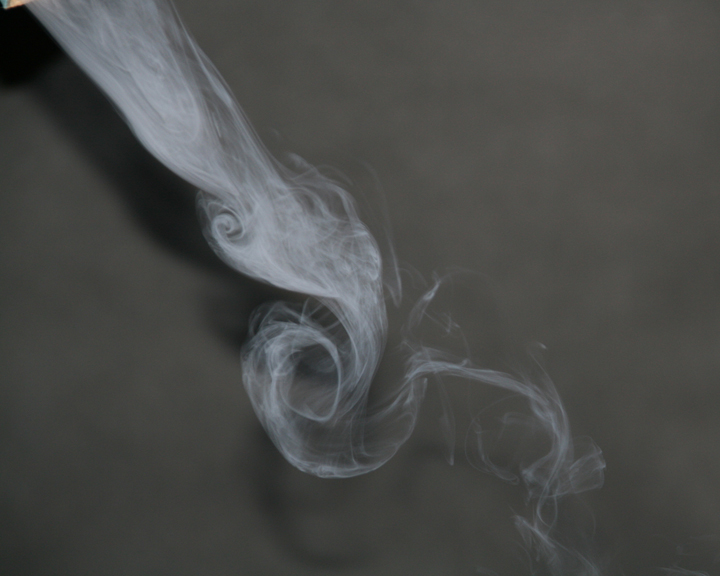

Ray (Hsin Jui) Wu, Group Delta


More info.
Phil Bollam, Group Delta


More info.
Justin Cohee, Group Delta


More info.
Erik Hansen, Group Delta


More info.

Group Alpha: Gordon Browning, Tracy Eliasson, Travis Gaskill, Owen Hnath. Schlieren uses changes in refractive index to deflect light, making patterns of light and dark. Here, refractive index was changed by heating air.
  Click to view larger image. Click to view larger image. Click to view larger image. Click to view larger image.

Tracy Eliasson, Group Alpha

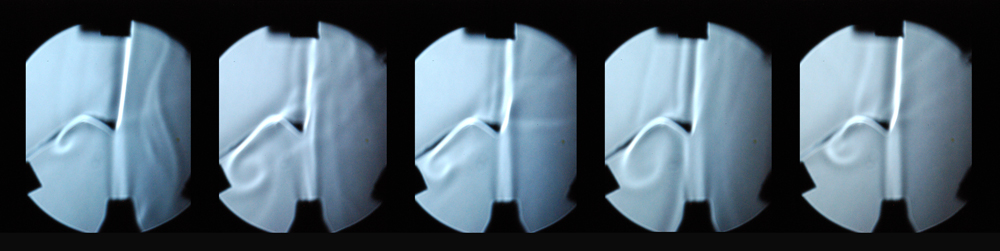

Schlieren was used to image hot plumes. The plume was partially deflected by a curved barrier.
More info.
Gordon Browning, Group Alpha

Schlieren was used to image hot plumes.
More info.
Travis Gaskill, Group Alpha

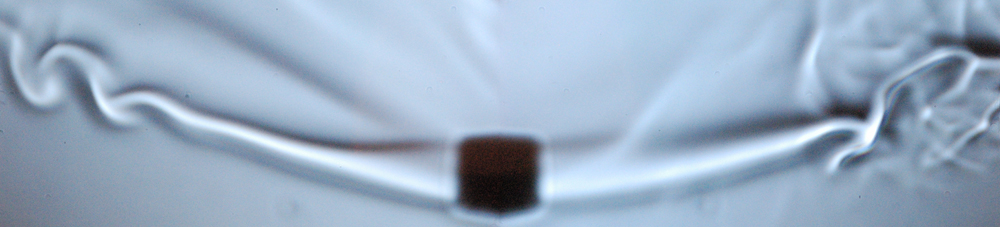

Schlieren was used to image hot plumes. Two images were rotated and assembled.
More info.
Owen Hnath, Group Alpha

Composite of two human exhalations.
